Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KOYAMA / OEM
  • Model Number: NPS120-12
  • Type: Lead Acid
  • Nominal Voltage: 12V
  • Size: 407*174*210*233mm
  • Nominal Capacity: 120Ah
  • packing details: Paper Carton with Wooden Pallet
  • HS code: 85072000
  • certificate: CE, UL, ISO9001, ISO14001
  • service: OEM is ok
  • Battery type: 12V 120AH Solar Battery
  • Warranty: 2 Years
  • Design life: 10-12years
  • key word: Solar Panel Battery

Packaging & Delivery

Packaging Details: carton /pallet
Delivery Detail: Shipped in 25 days after payment

For more Hot Sell batteries, please click:

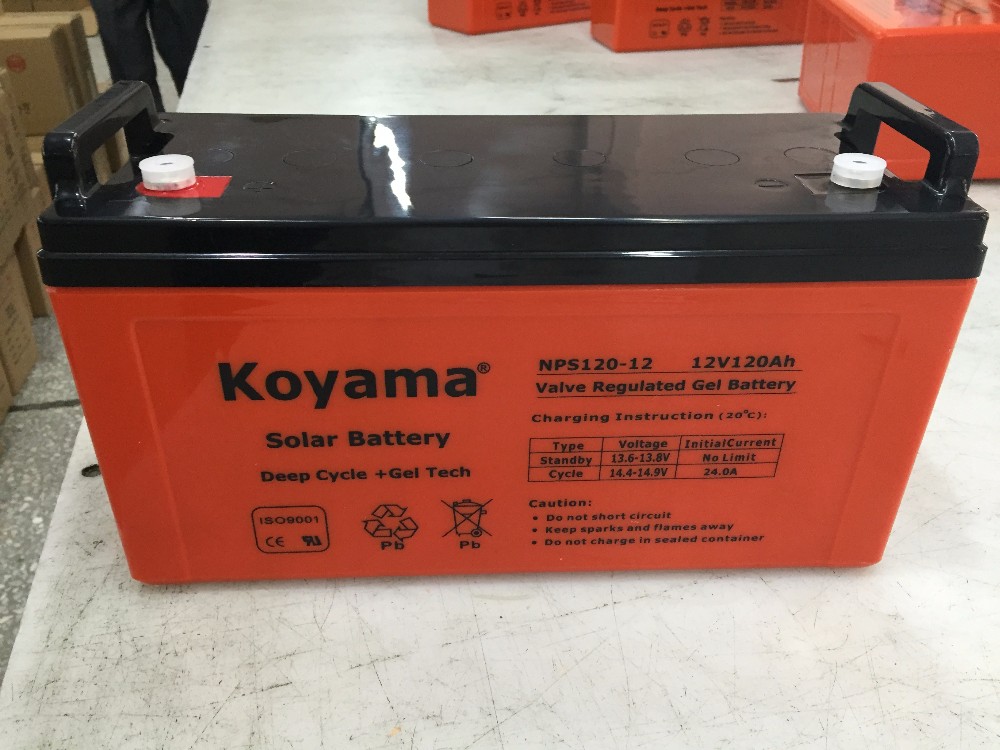

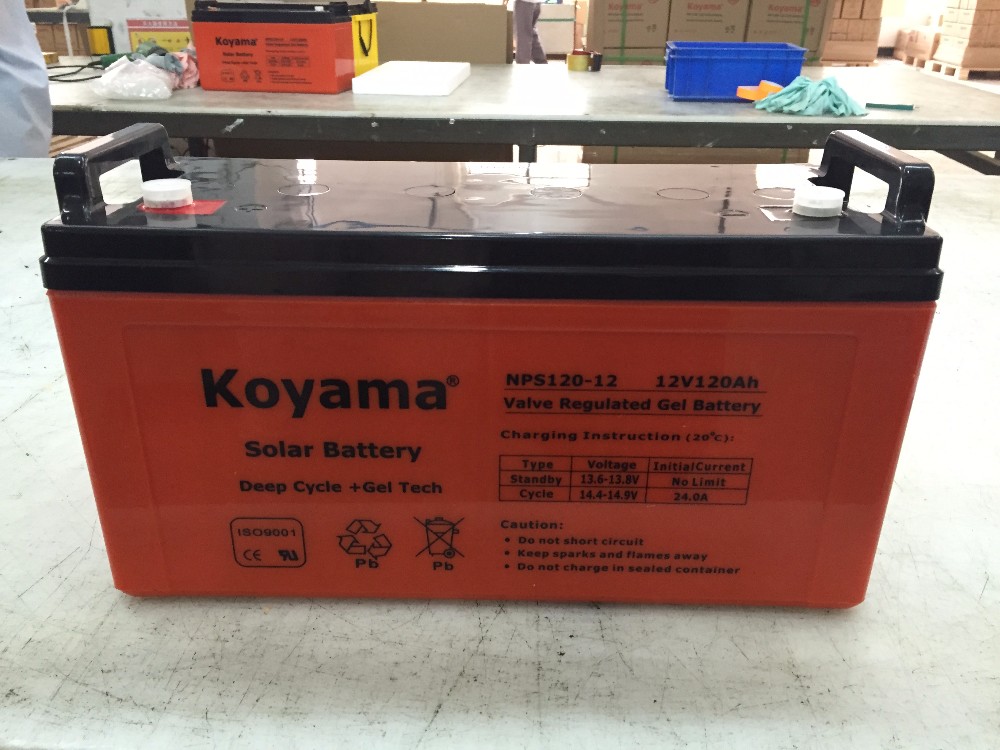

 KOYAMA Premium Quality 12V120AH Solar Panel Gel Lead Acid Rechargeable Battery



Specifications

120AH solar gel rechargeable batteries

120AH solar panel batteries

Heavy duty
deep cycle design
Hybrid gel technology
longer life 12-15 years

12v120ah sealed lead acid battery, UPS battery, Rechargeable deep cycle gel solar panel battery NPS120-12





Koyama NPS Series Solar Rechargeable Batteries are specifically designed with revolutionary long life heavy duty plate gel technology for solar power storage.Solar batteries are traditionally hard working batteries and are usually cycled on a daily basis as part of primary power source of electricity where no grid power is available



Description

Solar rechargeable batteries are an intricate component for off-grid electrical systems such as solar, wind, and mini hydroelectric systems.

All these systems produce DC electrical which must be stored so that it may be used at a later time. In order to do this at the present time we use deep cycle batteries.

Deep cycle rechargeable batteries are used because they have the ability to be recycled many times. This means that they can go from being charged to being discharged to 50% numerous times without damaging the batteries unlike that of other batteries such as cranking batteries which are used to start vehicles.



Specifications:

Voltage:-----2+6+12 Volt Nominal Plates Extra Heavy Duty

Plate Alloy---Virgin Pure Lead /1.6% Tin

Terminal---Copper Insert +Threaded Post

Container /Cover---ABS

Charge Voltage---Cycle 2.35VPC: Float 2.25 to 2.30Vpc@20C

Specific Gravity---1.280

Electrolyte---Sulphuric acid thixotropic gel

Vent---Self Sealing -2psi operation

Operating Temperature: -25 to +55 (However we recommend that the batteries be operated in the temperature range of 20 to 30 C, to obtain full life and optimum performance.)

EXTRA FEATURES

To Reduce float current by about 50%^

To Minimise water loss

To reduce cell failure due to dry out

To extend battery float services life due to reduced plate corrosion

Full design life when used in temperature up to 30 Celsius degree

To maintain full battery capacity by preventing depolarization of negative plate

To reduce the possibilities of thermal runaway

EXTRA FEATURES

Will reduce float current by about 50%

Will reduce gassing by up to 80%

Will minimise water loss

Reduce cell failure due to dry out

Will extend battery float service life due to reduced plate corrosion

Batteries will have full design life when used in temperatures up to 30 C.

Will maintain full battery capacity by preventing depolarization of negative plate

Reduces the possibility of thermal runaway



INNOVATIVE FEATURES

Valve Regulated Lead Acid

Fully tank formed plates

Gelled Thixotropic electrolyte

Spill-proof / leak proof

Multi-position usage

Multi-cell container

Low self-discharge

Quality system-ISO 9001

FAA and IATA Approved as NON Hazardous

DEEP CYCLE APPLICATIONS

Solar Photovoltaic/Wind power system

Alternative Energy Storage

Cycling/Float Service

Wheelchair/Electric vehicle

Boats/Marine/Navigational Aids

Floor Cleaning machines

Engine Starting

Water Pumping/Golf caddy

Portable medical equipment



Lead time : 20-30day after getting payment

Warranty: 2V batteries : 5 years 6/12 Batteries: 2 years

Certificates : ISO ,CE ,UL



P.S. Our payment terms vary for different countries and regions



We are one of the leading manufacturer of solar rechargeable batteries for more than 20 years in Guangdong ,China. All batteries are excellent quality , well recognizing worldwide and with reasonable Prices . Any inquiries or query would be replied at the earliest date .



Model NoRated Voltage(V)Capacity (Ah)DimensionWeightTerminal Type
LengthWidthHeightTotal Heightkg
 mmmm mm mm
NPS50-12125025813420020015.6L8
NPS55-12125522913820822617.5L4/T3
NPS65-12126535016717817820.3L9/T3/L4
NPS70-12127035016717817821.4L9/T3
NPS75-12127526016921123121.8L11/T3
NPS80-12128026016921121523.5T3/L11/L4
NPS85-12128533117421421925L12/T4
NPS90-12129030716921122727L13/T3
NPS100-121210033117421421930L12/T4
NPS120-121212040717421023334.8L14/T5
NPS150-121215048417124124143.8L16/T4
