Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KOYAMA
  • Model Number: NPS150-12
  • Usage: solar/wind power system or photovoltaic system power
  • Voltage: 12v
  • Sealed Type: Sealed
  • Maintenance Type: Free
  • Size: 484*171*241*241mm
  • Weight: 43.8kgs
  • Nominal Capacity: 150Ah
  • color: black/grey/blue/orange
  • battery type: gel storage battery deep cycle solar 12V150Ah battery
  • model name: 12V 150Ah Solar Gel Battery
  • life time: 10-12 years
  • OEM service: ok
  • certification: ISO14001, ISO9001, CE, ROHS, SGS
  • item: gel storage battery deep cycle solar 12V150Ah battery

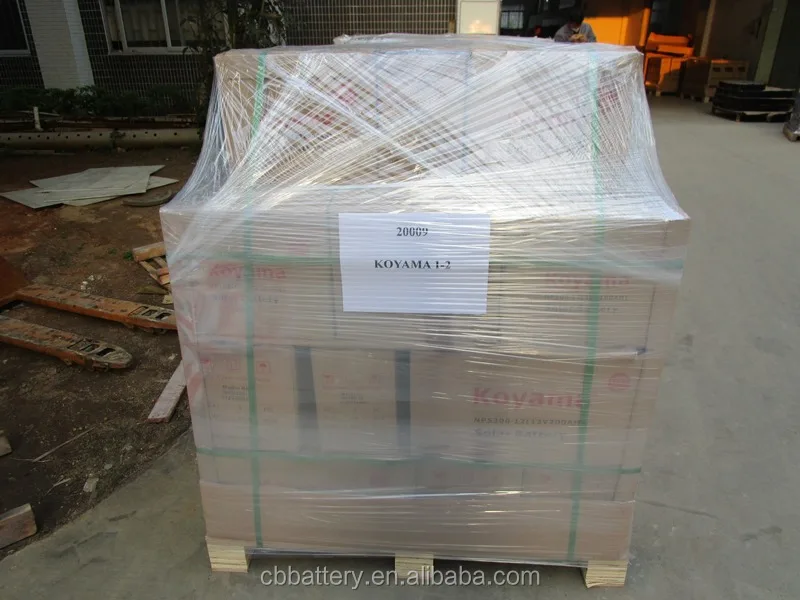

Packaging & Delivery

Packaging Details solar battery 12V150AH Front terminal type - Carton size: customized type - 1 PC per carton - 24 pallet per 20's container - CE,UL ISO9001 approved
Delivery Time 25-30 days after getting deposit

solar battery prices
- Volt: 12V
- Rated capacity:150ah
- Size: 484x171x241mm
- Weight: 43.8kg



PRODUCT DESCRIPTION



Specifications & Characteristics Of AGM lead acid solar battery 12v150ah:
Nominal Voltage12V
Rated Capacity (10 hour rate)150AH
Size (Length*Width*Height*Total Height)448*171*241*241mm
Weight Approx43.8kg

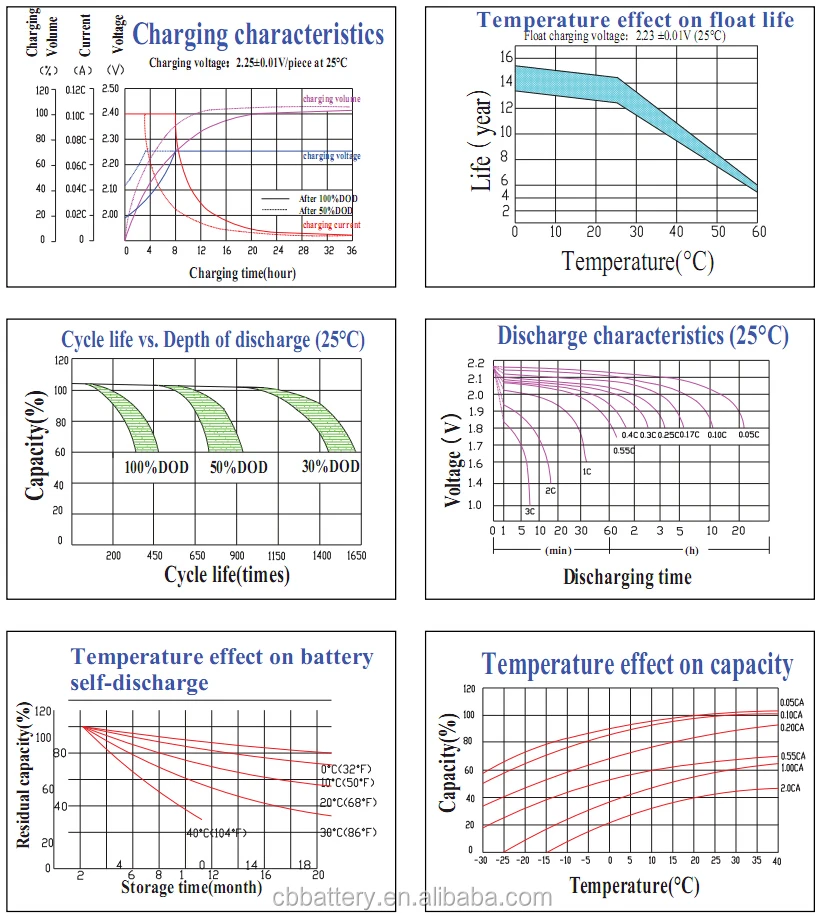

Capacity Affected By Temperature

(10 Hour Rate)

40°C(104°F)102%
25°C(77°F)100%
0°C(32°F)85%
-15°C(5°F)65%

Self-Discharge at 25°C

(77°F)

Capacity after 3 Month Storage91%
Capacity after 6 Month Storage82%
Capacity after 12 Month Storage64%
TerminalFRONT terminal

Cycle Charge

(Constant Voltage)

(time 14-16h)
Voltage 14.4-14.8V

Float Charge

(Constant Voltage)

Voltage 13.5-13.8V
Usage UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency Lighting System, Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ Etc
Warranty2 Years from B/L date
OEM ServiceAccept
Colororange red
Container MaterialUL94HB And UL 94V-0 ABS Plastic
Certificate

CE; UL; ISO9001; ISO14001; OHSAS18001; TLC; IEC; Solar Product Certificate

Product Show

PRODUCT SHOW



ADVANTAGES

1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic.
2) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3) High quality AGM separator
4) Positive plates: PbCa grids minimize corrosion and prolong life.
5) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
6) Vent Valve: Allows the release of the excess gas automatically for safety.



OUR BATTERY HAS UNDERGONE STRICT QUALITY TESTING







* CAUTION

(1) The AGM lead acid solar battery is maintenance free and without acid adding, any top cover opening is forbidden during use.
(2)The AGM lead acid solar battery should be charged once every 6 months after leaving the factory.
(3)Checking the AGM lead acid solar battery appearance before using, and avoid strong vibration or mechanical damage.
(4)Recommend recycling using temperature 25℃ ± 5% , the AGM lead acid solar battery is strictly prohibited get wet in the rain and soaking.
(5)The AGM lead acid solar battery prices installation and removal should be uniform stress, stress at the shell should be part of the battery, avoid damage the terminal.
(6)If you need AGM lead acid solar battery in parallel, do not exceed three parallel.
(7)The AGM lead acid solar battery when used in multiple circuits, it must be according to battery marks "+", "-" in order of priority and space cannot be less than 15mm.
(8)Before you connecting with device, make it disconnected, then connect the AGM lead acid solar battery positive to the devices positive, negative connected to negative terminal, and fix the cable.
